The equipment of fried instant noodles production line is an automatic production line developed and produced by our company. After more than 46 years of continuous updating, upgrading and improvement, the technology has been very mature, which can produce square shape noodle,round shape noodle and other shapes of instantnoodles.
This production line is used to produce square fried instant noodle. It is a product developed and continuously improved by our company according to the market demand for many years. Using high-tech equipment and precision processing technology, it has the characteristics of high degree of automation and stable performance, and the products produced are neat in appearance and uniform in color and luster.
The equipment is used for the continuous production of fried instant noodles with high production efficiency. The fried noodle can be rehydrated and eaten directly. The instant noodles after rehydration are soft and gluten; if eaten directly, the taste is crispy and the aroma is rich.
output: 100000PCS/8H
roller pairs: 9pairs
steam consumption:≥0.8Mpa;
Total Power:around 80KW not including packaging machine,380V,50Hz ;
Environment and working conditions of instant noodle production line
Industrial electricity, power supply, water and steam are required in the workshop.
Brine mixer→Brine measuring device→Dual-axis Mixer→Aging machine→Compound roller→Multi-layer steamer→Square noodle cutting and dividing machine→Fryer→Cooling machine → Packing machine
| model number | capacity | Power | Steam consumption | Workshop for single layer steamer dimension(m) | Workshop for 3 layer steamer dimension(m) | Workers |
| BFP-200 | 30000/8H | 45KW | 1200-1300KG/H | 70*5*4 | 50*5*4 | 4 |
| BFP-300 | 60000/8H | 56 KW | 1200-1400KG/H | 75*5*4 | 60*5*4 | 4 |
| BFP-400 | 80000/8H | 83 KW | 1800-2000KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-500 | 100000/8H | 90 KW | 1800-2100KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-600 | 120000/8H | 106 KW | 2000-2200KG/H | 100*7*4.5 | 80*7*4.5 | 5 |
| BFP-700 | 140000/8H | 114 KW | 2400-2600KG/H | 110*8*4.5 | 80*8*4.5 | 5 |
| BFP-800 | 160000/8H | 125 KW | 2600-2800KG/H | 110*8*4.5 | 90*8*4.5 | 5 |
| BFP-1000 | 200000/8H | 145 KW | 2800-3200KG/H | 120*8*4.5 | 100*8*4.5 | 5 |
| workers:( not including packaging workers ) | ||||||

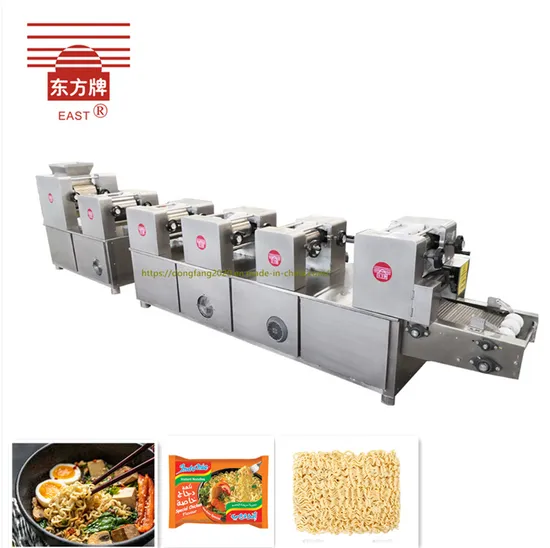

The 500 New Type Roller Machine
The 500 type Roller machine adopts a brand-new appearance design, which is beautiful and novel, giving people a completely new feeling. Adopting four-axis feeding, smooth feeding, ensuring the integrity of the noodle sheet, and excellent sheet forming effect; especially the effective combination of photoelectric tracking and automatic sheet feeding, which greatly reduces labor intensity
