BFP1000 Fried Cup Noodle Production Line
Classification:
Product Introduction
Because our company is a professional manufacturer in China, we can also customize the equipment according to the user's requirements or samples.
Product Details
Product Introduction and Features
WFP1000 Type Automatic Fried Round Instant Noodle Production Line
Main parameters of production line
Production capacity：400pcs/min,80g/pc
roller width ：1000mm
Roller number: 8groups
Steaming operation mode:3-layers horizontal reciprocating type
Steaming time:180s
Frying time: 135s
Heating medium: steam
Noodle oil content:≦18%
Steam consumption: about 3600kg/h
Steam pressure：8kg
Installed capacity：About 172KW
According to the requirements of many foreign customers, our company has increased the investment in research and development of the fried instant noodle production line, improved the automation of the instant noodle production line, and greatly changed the product performance and appearance, especially the round instant noodle(cup noodle) production line. Its maximum production capacity per minute can reach 420 pieces, with obvious characteristics such as high efficiency, energy saving and small covering areas. The round instant noodle produced is golden in color, beautiful in appearance and smooth in taste, and has been recognized and praised by foreign customers. The produced noodles can be made into cup noodles, bowl noodles or bag noodles, and the packaging forms are various to meet the needs of different consumers.
High degree of automation, only 3 workers;
Product diversification: divided by capacity, 60,000 pcs/8 h, 80,000 pcs/8 h, 100,000 pcs/8 h, 120,000 pcs/8 h, 160,000 pcs/8 h etc. Customers can choose a production line with suitable capacity according to sales and market.
Because our company is a professional manufacturer in China, we can also customize the equipment according to the user's requirements or samples.
Features of Instant Noodle Production Line
1. The noodle blocks' shape is neat, the ripples and the color are uniform.
2. Fast production, large capacity, Steam saving, and low oil consumption.
3. Finished products meet food safety requirements. The production process conforms to safety operation standard
4. Good stability, low failure rate, simple operation and beautiful appearance.
5. PLC programmable controller realizes the full automation control of the production process, the synchronous speed regulation of the whole line of equipment, the monitoring and management of the data of a single equipment, and the remote cross-border monitoring can be realized through the Internet.
6. The parts or equipment of every link of the equipment in the entire production line in contact with food conform the requirements of FDA(Food and Drug Administration) food machinery. 304 stainless steel or food-grade materials are used to ensure the safety and health of noodle food.
7. All transmission parts have outer shields to ensure safe operation without accidents.
Our company has a complete the system of QoS(Quality of Service) guarantee including product development, manufacturing, pre-sales and after-sales . While manufacturing high-quality instant noodle production lines for customers, we also provide users with comprehensive services.
Pre-sale: Plant area planning; drawing production line layout; Selection of supporting equipment, purchasing; Product positioning analysis.
After-sales: Send installers to the site to install and debug the production line to produce qualified noodles; Training users how to operate the production line, maintenance, and production management; Free lifetime telephone consultation.
Process technology parameter table, please select the product you are interested in based on production capacity or model
| Model | Production Capacity (70g/piece) | Installed Capacity | Steam Consumption | Workshop Requrements L×W×H(METER) |
| Model 1200(type) | 480(pcs/min) | 223KW | 4200kg/h | 140×8×6 |
| Model 1000(type) | 420(pcs/min) | 180KW | 3600kg/h | 130×8×6 |
| Model 900(type) | 360(pcs/min) | 180KW | 3100kg/h | 130×8×6 |
| Model 800(type) | 330(pcs/min) | 150KW | 2800kg/h | 120×8×6 |
| Model 700(type) | 300(pcs/min) | 140KW | 2600kg/h | 120×8×6 |
| Model 600(type) | 300(pcs/min) | 120KW | 2600kg/h | 110×8×6 |
| Model 500(type) | 240(pcs/min) | 90KW | 2000kg/h | 100×8×6 |
| Model 400(type) | 200(pcs/min) | 90KW | 1700kg/h | 85×8×6 |
| Model 300(type) | 126(pcs/min) | 90KW | 1000kg/h | 80×8×6 |

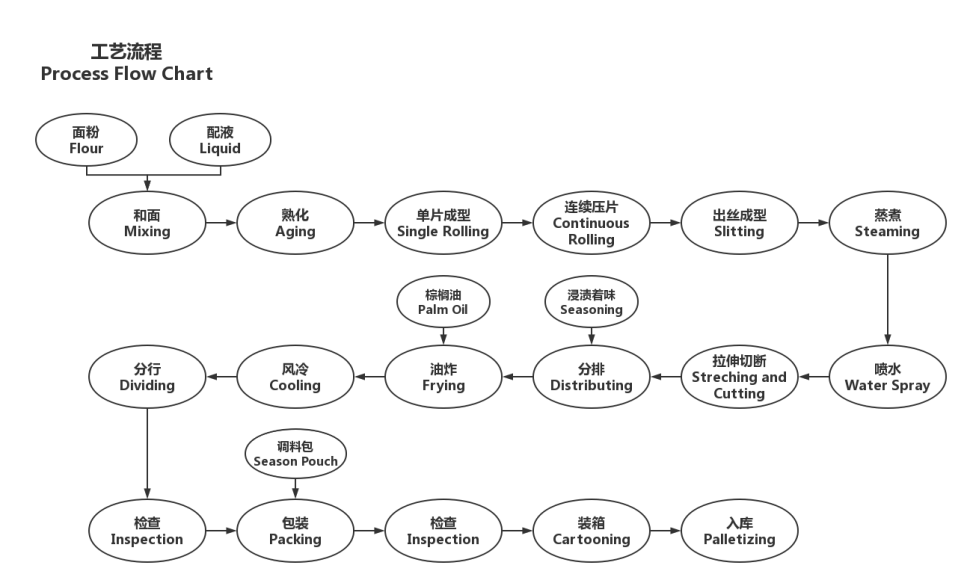

Production line process flow
Main unit machine pictures
Continuous mixer
Continuous mixer
Ripen conveyor
New type rollers
Waving machine
Three layer steamer
Cup noodle cutting machine
Cup noodle cutting machine
automatic shaping machine

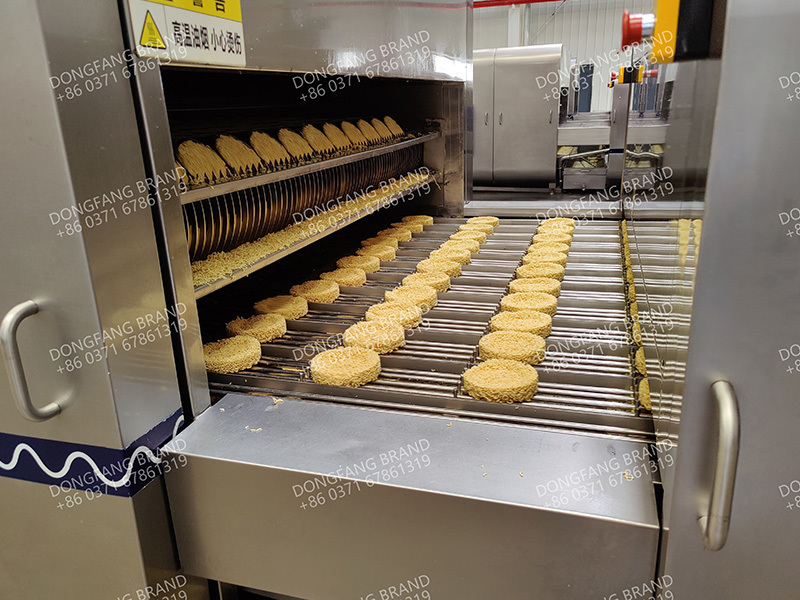

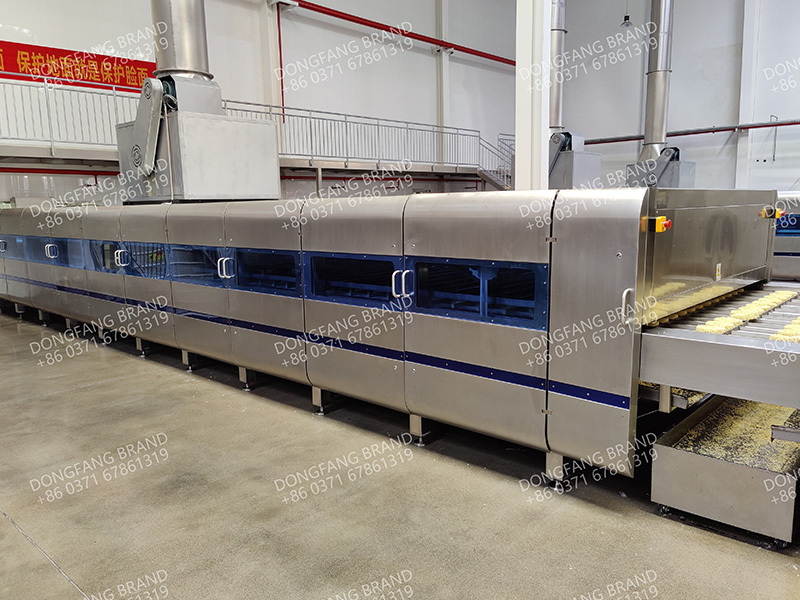

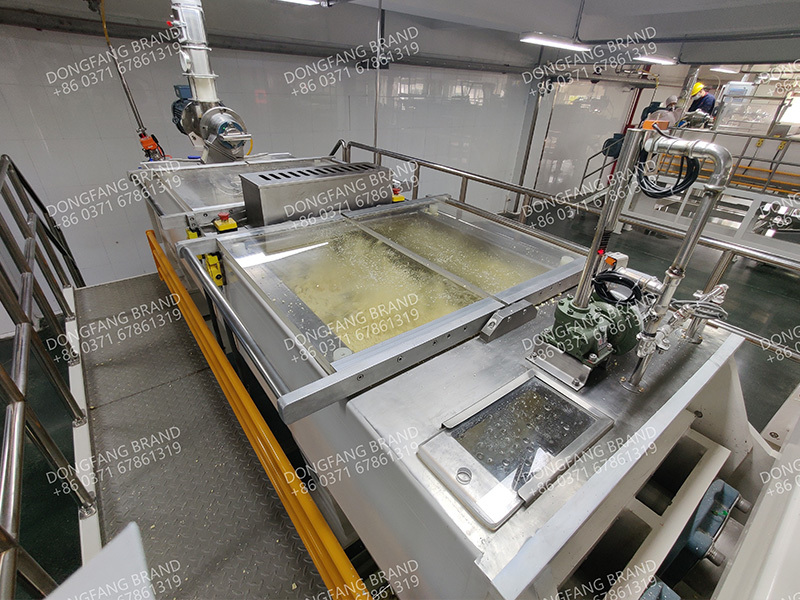

New type Fryer
Oil filter

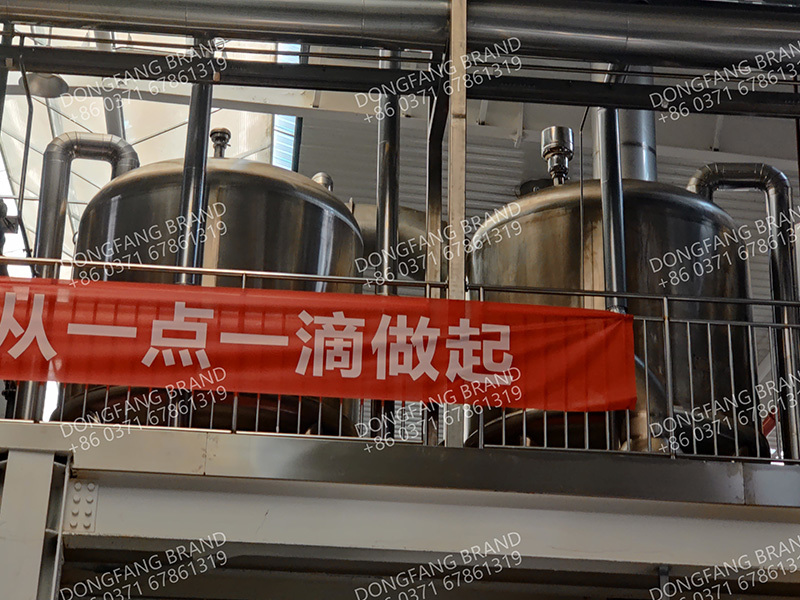

Oil tank
Arranging machine
Cooling machine
Conveyor
Finished product

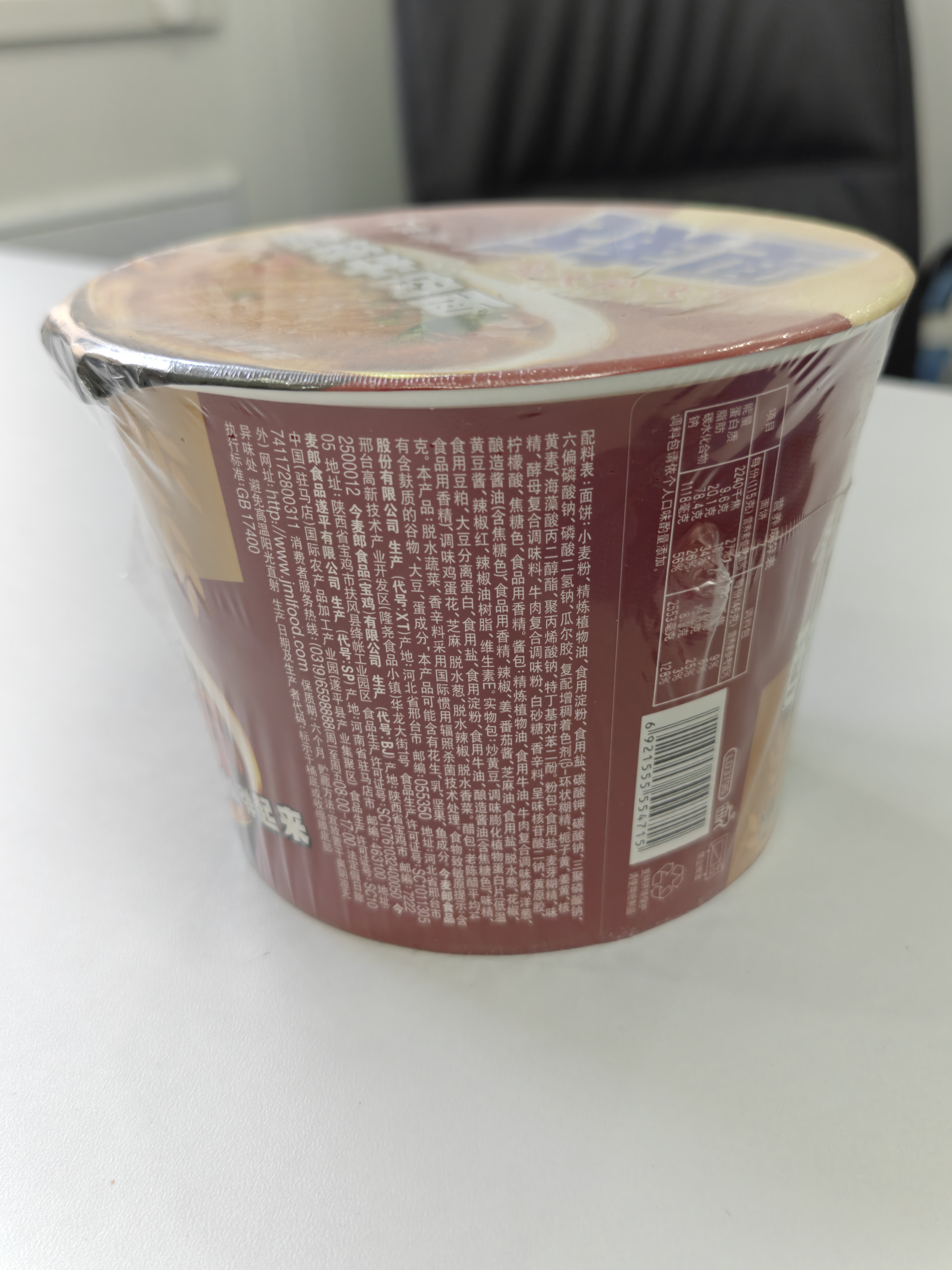

80g Bowl Packaging
50g Cup Packaging
100g Bag Packaging

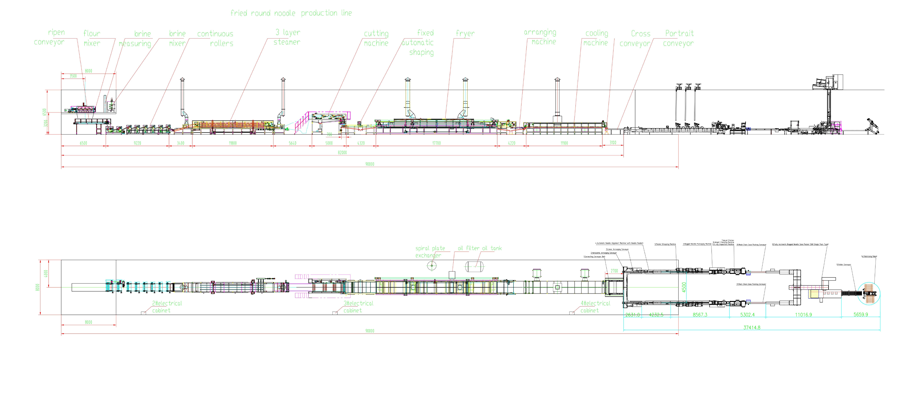

Production line workshop layout
Production line video
