Chinese Manual Fresh Noodle Making Machine with Low Price
Classification:
Product Introduction
After-sales Service: 1 Year
Warranty: 1 Year
Product Details
The Equipment Of Fresh Noodles Production Line
The equipment of Fresh noodles production line is an automatic production line developed and produced by our company. After more than 40 years of continuous updating, upgrading and improvement, the technology has been very mature, which can produce square noodle,round noodle and other shapes of instantnoodles.
Parameter
| model number | capacity | Power | Steam consumption | Workshop for single layer steamer dimension(m) | Workshop for 3 layer steamer dimension(m) | Workers |
| BFP-200 | 40000/8H | 45KW | 1200-1300KG/H | 70*5*4 | 50*5*4 | 4 |
| BFP-300 | 60000/8H | 56 KW | 1200-1400KG/H | 75*5*4 | 60*5*4 | 4 |
| BFP-400 | 110000/8H | 83 KW | 1800-2000KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-500 | 140000/8H | 90 KW | 1800-2100KG/H | 100*6*4 | 75*6*4 | 4 |
| BFP-600 | 160000/8H | 106 KW | 2000-2200KG/H | 100*7*4.5 | 80*7*4.5 | 5 |
| BFP-700 | 200000/8H | 114 KW | 2400-2600KG/H | 110*8*4.5 | 80*8*4.5 | 5 |
| BFP-800 | 230000/8H | 125 KW | 2600-2800KG/H | 110*8*4.5 | 90*8*4.5 | 5 |
| workers:( not including packaging workers ) | ||||||
Equipment includes

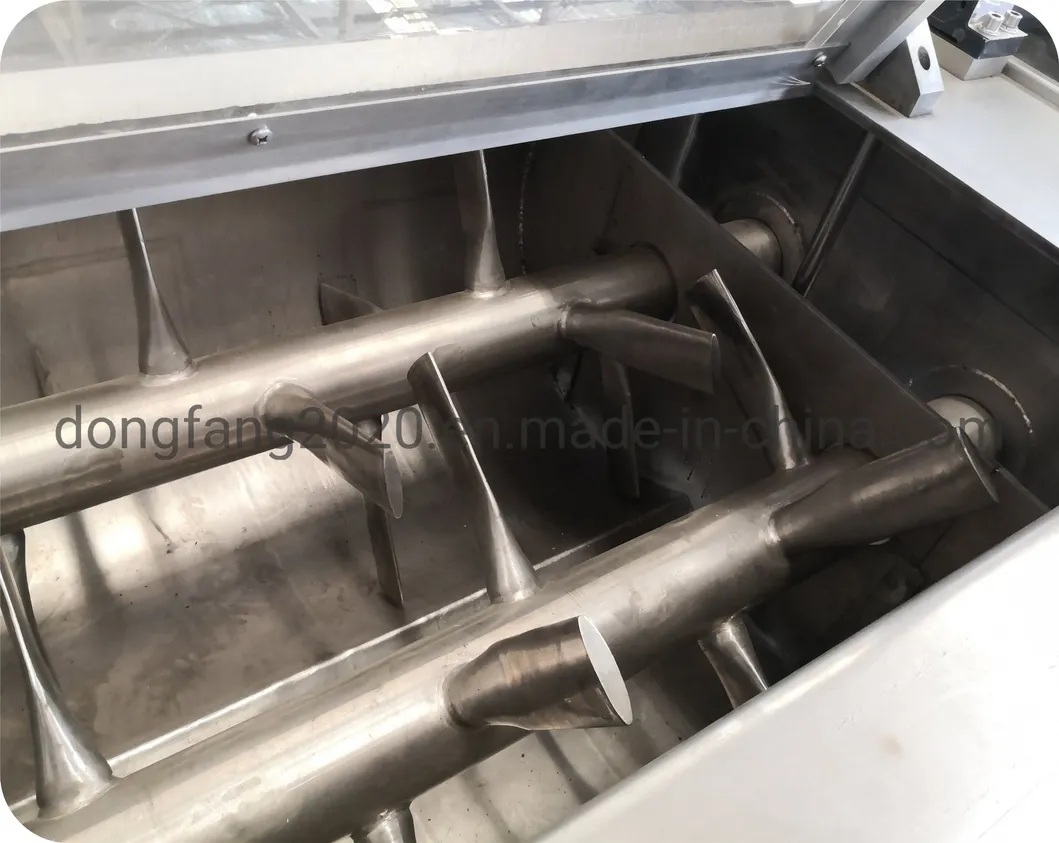

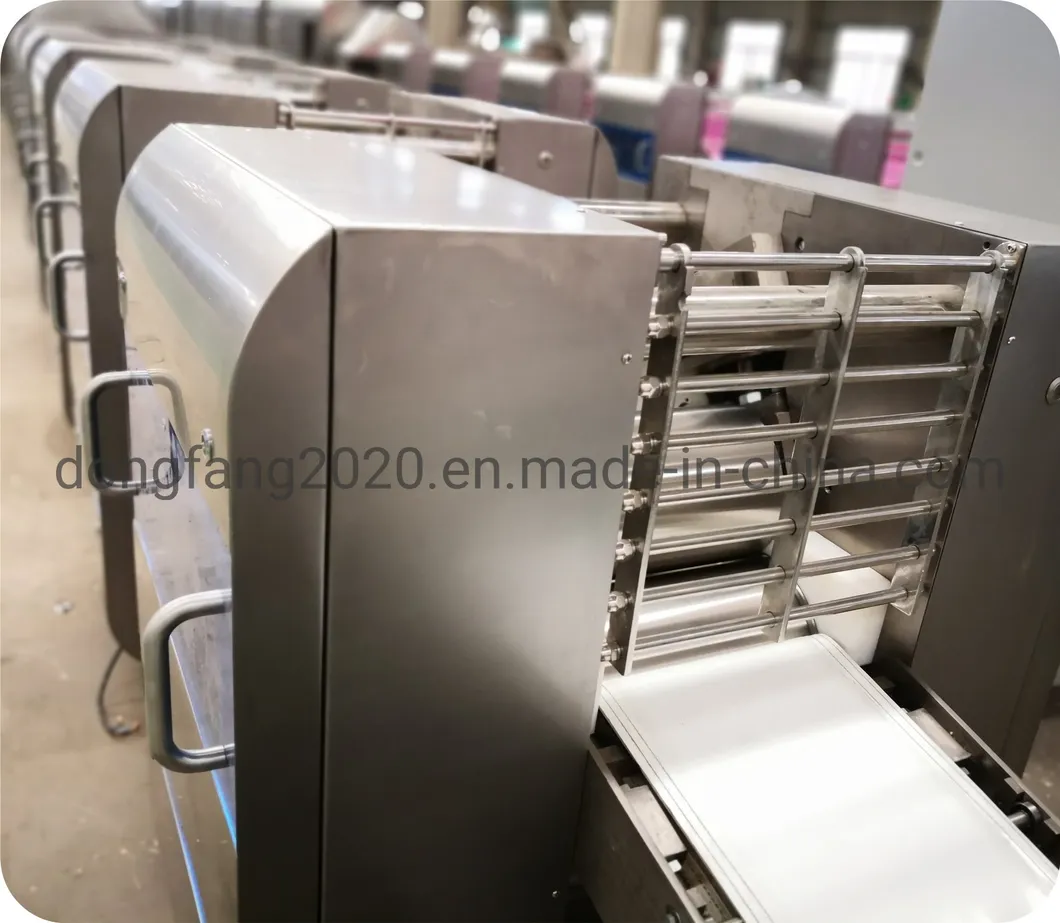

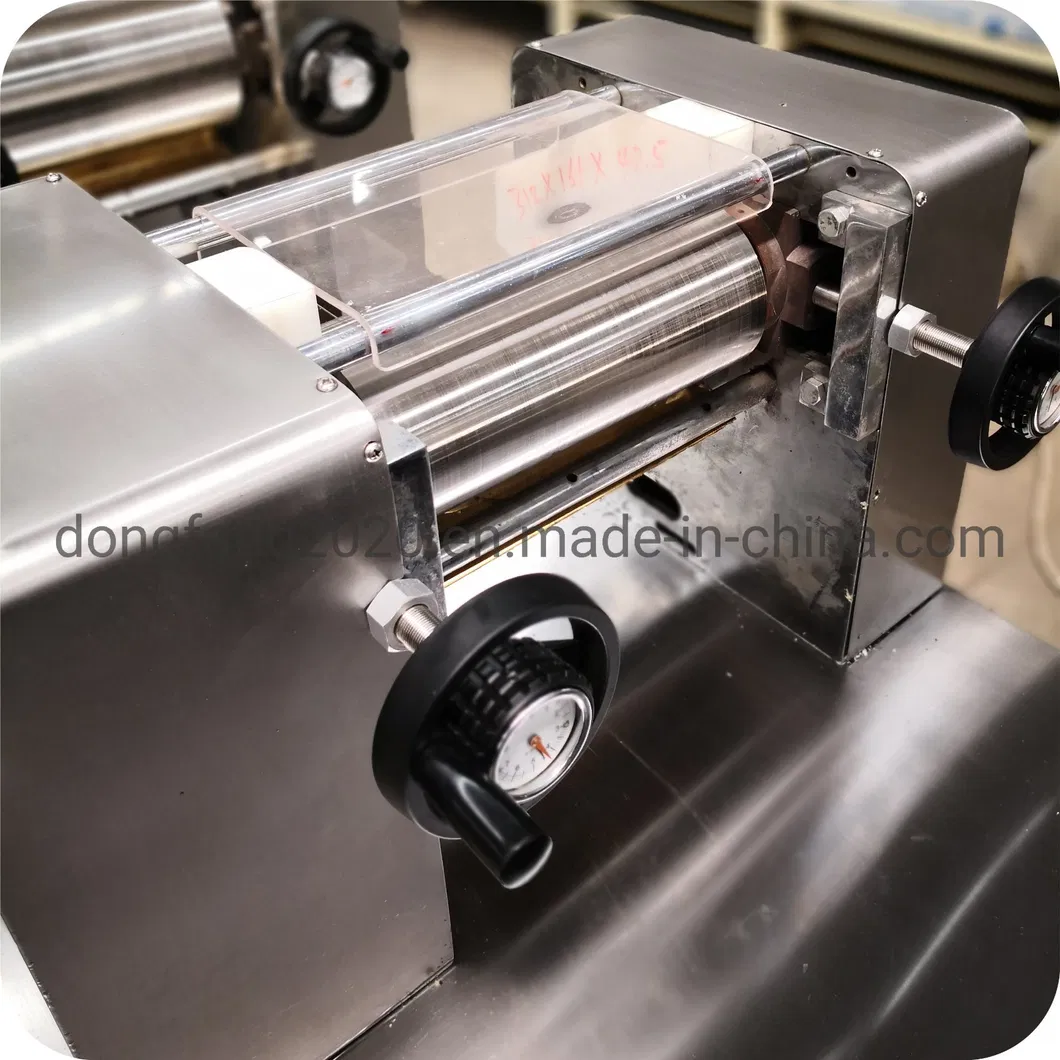

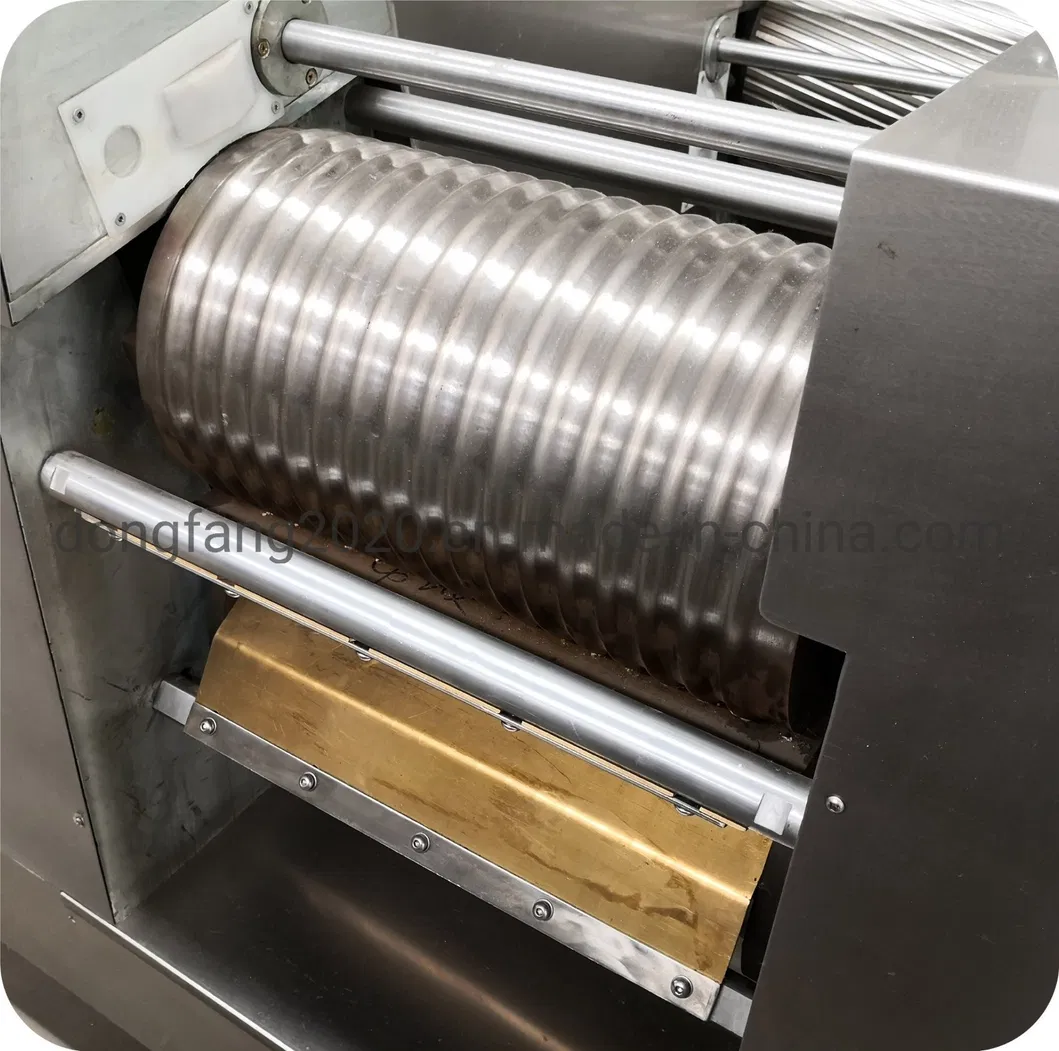

The instant noodle production line is composed of Brine mixer, Brine measuring device,Dual-axis Mixer,Aging machine,Compound roller, Multi-layer steamer,Square noodle cutting and dividing machine,Fryer, Cooling machine, Conveyor and other unit machines.
Flow Chart
Brine mixer→Brine measuring device→Dual-axis Mixer→Aging machine→Compound roller→Multi-layer steamer→Square noodle cutting and dividing machine→Fryer→Cooling machine → Packing machine
Product details
Key words:
Layout
