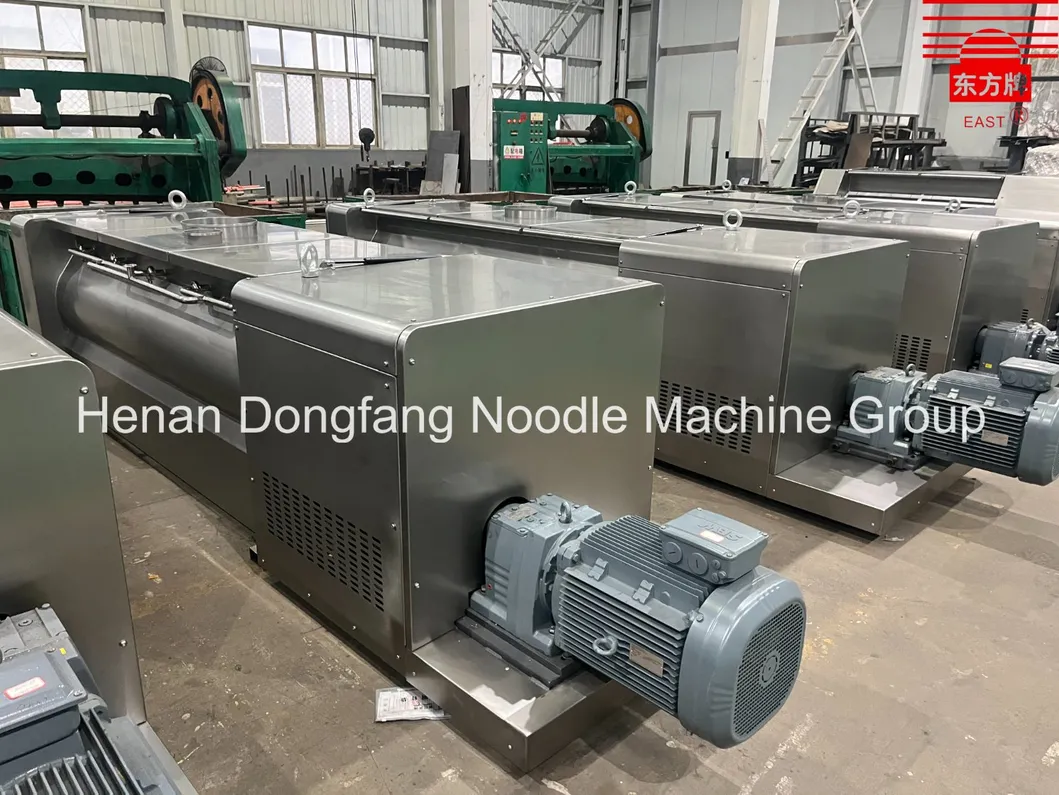

1.Flour mixer
Fried Round Instant Noodle Production Line with High Automation
Classification:
Product Introduction
Customization: Available
After-sales Service: 10 Years
Warranty: 1 Year
After-sales Service: 10 Years
Warranty: 1 Year
Product Details
Brief Introduction:
The fried instant noodle equipment production line is an integrated, fully automatic instant noodle production line that encompasses dough mixing, aging, rolling, cutting, steaming, frying, and cooling processes. It features a modular design, achieving full-process automation from raw materials to finished products, making it an ideal choice for modern instant noodle manufacturing companies to increase production capacity and ensure product quality.
Product Features:
1. High Automation and Easy Operation
- PLC intelligent control system for precise automated production.
- Touchscreen interface for simple and user-friendly operation, reducing the difficulty of operation.
2. High Production Capacity
- A production capacity of up to 160,000 packs in 8 hours, meeting the demands of large-scale production.
- A quick mold change system to flexibly adapt to market changes.
3. Precise Process Control
- Vacuum mixing, multi-stage rolling, and precise cutting to ensure noodle quality.
- Intelligent temperature control system to guarantee the effect of steaming and frying.
Different product model:
| Capacity | Power | Steam consumption | Workshop for single layer steamer dimension(m) | Workshop for three layer steamer dimension(m) | Workers |
| 60000pcs/8H | 56 KW | 1200-1400KG/H | 75*5*4 | 60*5*4 | 4 |
| 80000pcs/8H | 68 KW | 1300-1500KG/H | 80*6*4 | 65**4 | 4 |
| 100000pcs/8H | 80 KW | 1400-1600KG/H | 90*6*4 | 70*6*4 | 4 |
| 120000pcs/8H | 83 KW | 1800-2200KG/H | 100*6*4 | 75*6*4 | 5 |
| 160000pcs/8H | 106 KW | 2000-2200KG/H | 100*7*4.5 | 80*7*4.5 | 5 |
| 200000pcs/8H | 114 KW | 2400-2600KG/H | 110*8*4.5 | 80*8*4.5 | 5 |
| workers:( not including packaging workers ) | |||||

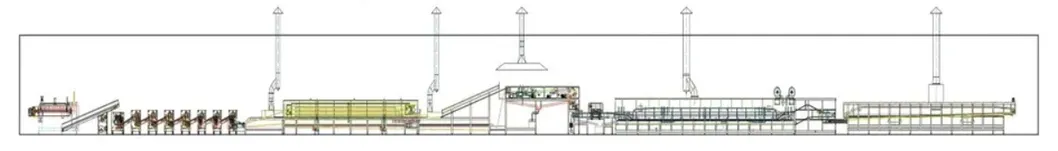

Production process and layout:

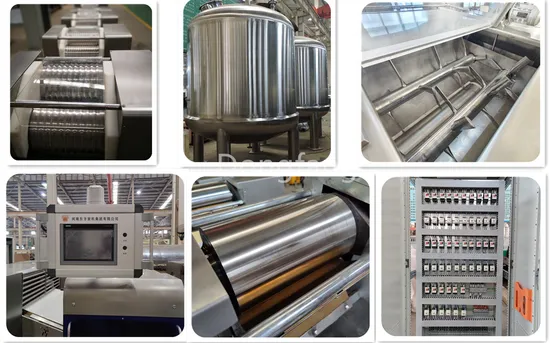

Main peoducts:
2.Ripen conveyor

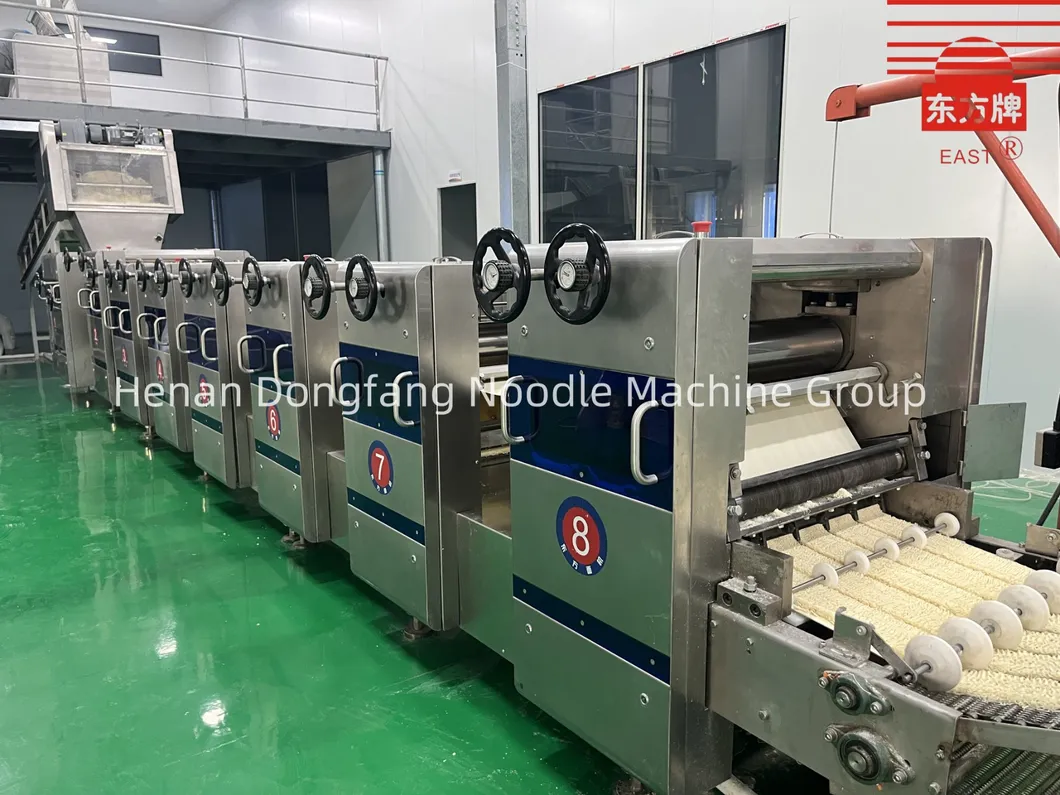

3.Roller

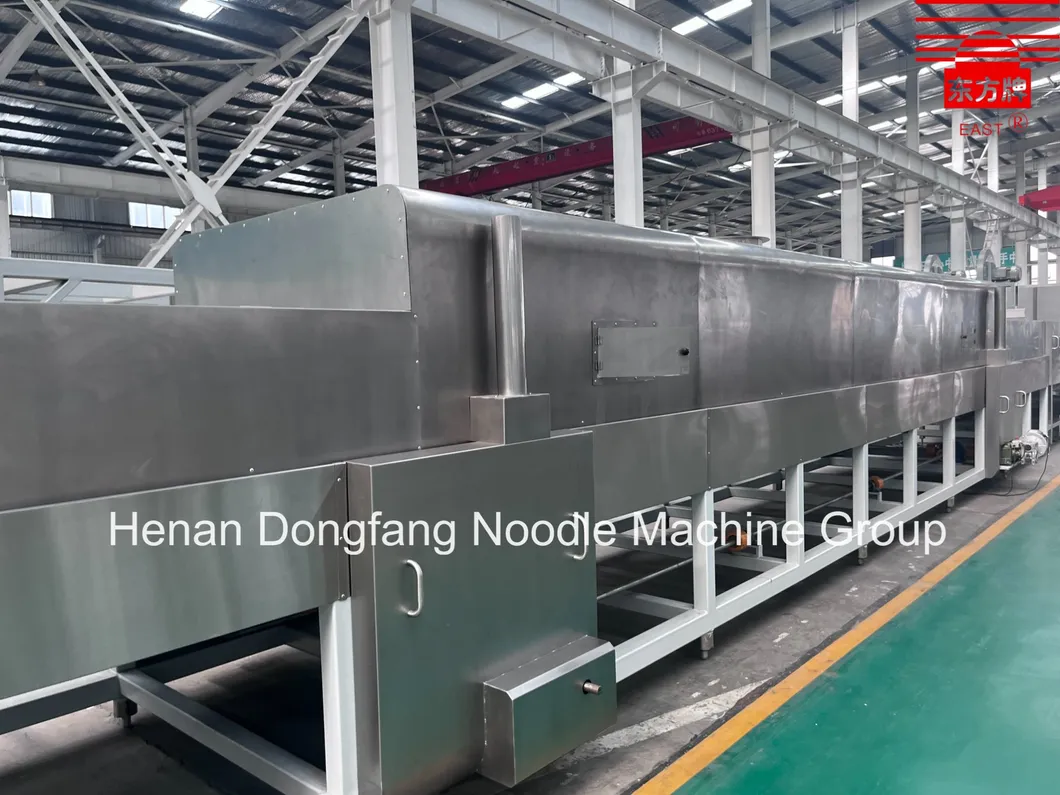

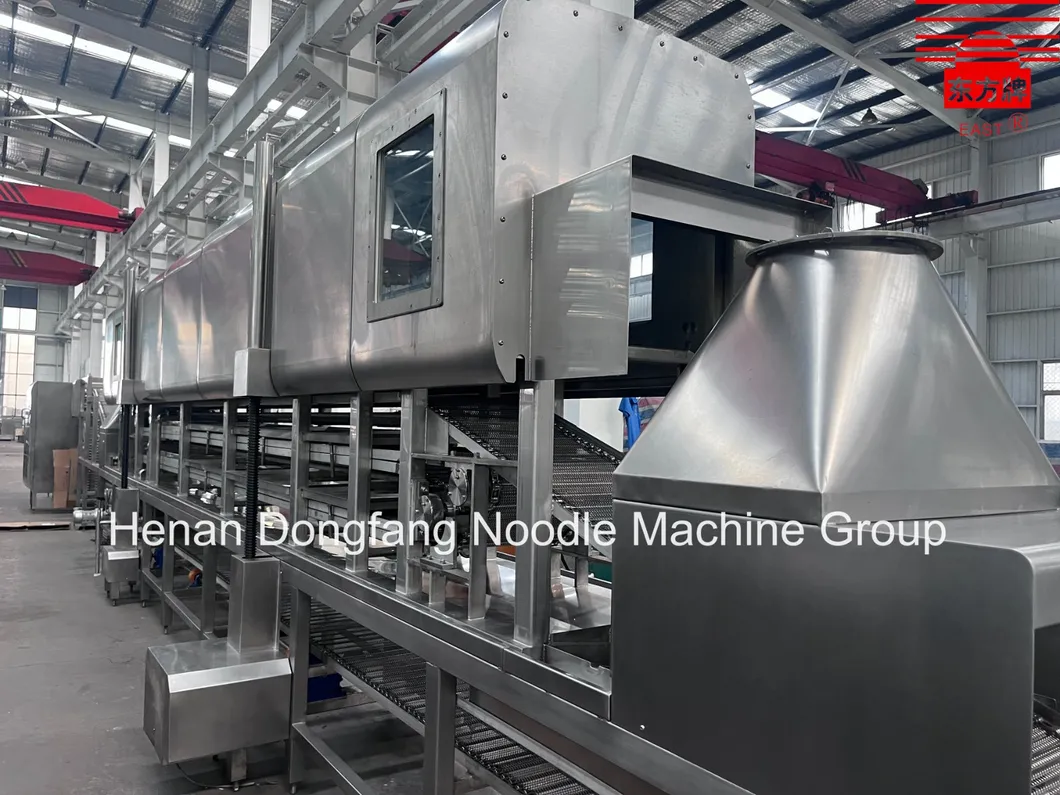

4.Steamer

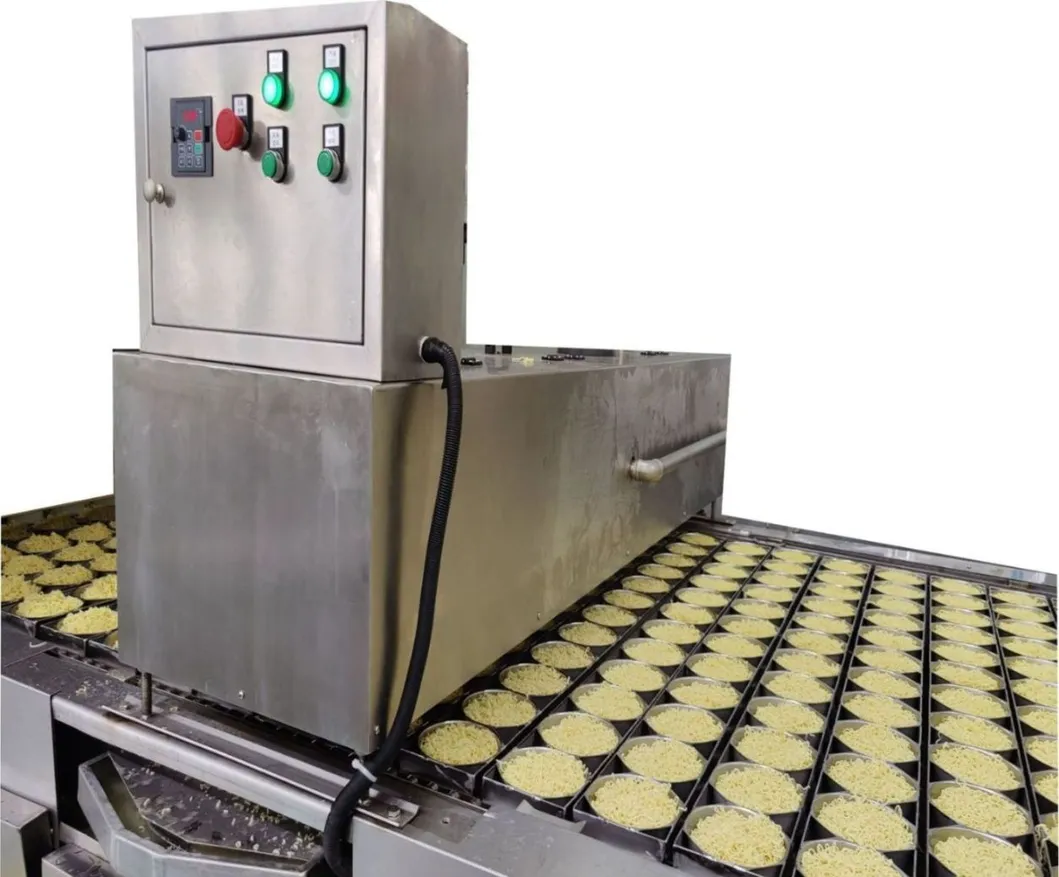

5.Round noodle cutting machine
6.Blowing and shaping
machine
7.Fryer
8.Arranging machine
9.Cooling machine
Key words:
Layout
