Instant Round Noodle Production Line with Small Capacity
Classification:
Product Introduction
After-sales Service: 10 Year
Warranty: 1 Year
Product Details
1.Brief discription of production line
It is a production line developed and continuously improved by our company according to the market demand for many years. Using high-tech equipment and precision processing technology, it has the characteristics of high degree of automation and stable performance, and the products produced are neat in appearance and uniform in color.
2.Feasures of product
- High level of automation which only needs 3 workers
- Long life and high hygiene standards which is made of 304 SS
- The maximum capacity reaching up to 400,000pcs/8h
- First-class level of technology and beautiful appearance
3.Different model of production line
| Model | Production Capacity | Installation Capacity | Steam Consumption | Workshop Requirements L*W*H(meter) |
| 1000 type | 420 pcs/min | 180KW | 2800kg/h | 130*8*6 |
| 800 type | 330 pcs/min | 150KW | 2200kg/h | 120*6*6 |
| 600 type | 250 pcs/min | 120KW | 1700kg/h | 110*6*6 |
| 400 type | 166 pcs/min | 80KW | 1300kg/h | 100*6*6 |
| 300 type | 125 pcs/min | 70KW | 1200kg/h | 90*6*6 |
| 200 type | 63 pcs/min | 70KW | 700kg/h | 80*6*6 |
4.Technical peremeters of 300 model production line
| Production Capacity | 30000pcs/8h, 70g |
| Noodle Cake Shape | Round Shape |
| Roller Width | 200mm |
| Flour Mixing Time | About15 Min/Time. |
| Aging Time | About 15Min/Time. |
| Steam Consumption | 700kg/h |
| Steam Pressure | 0.8Mpa |
| Frying Times | 120s |
| Equipment Dimention | About L55×W4×H3(M) |
| Workshop Requirement | About L80×W6×H6(M) |
| Electric Three Phase | 380V 50hz |
| Delivery Time | 90 Days |
| Warranty | 1 Year |
| Total Power | About 70KW |
| Packing Machine | 1 set |
| Workers Operation Side: | Depending On Final Drawing |
5.Production process

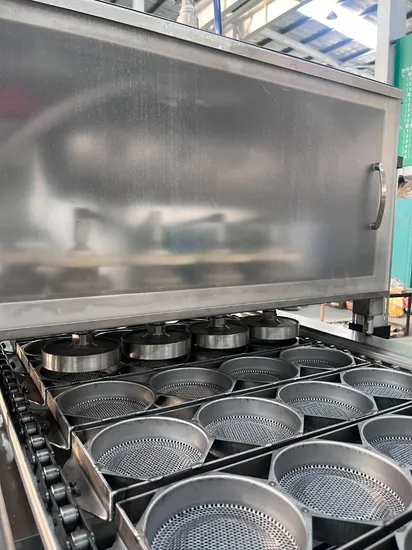

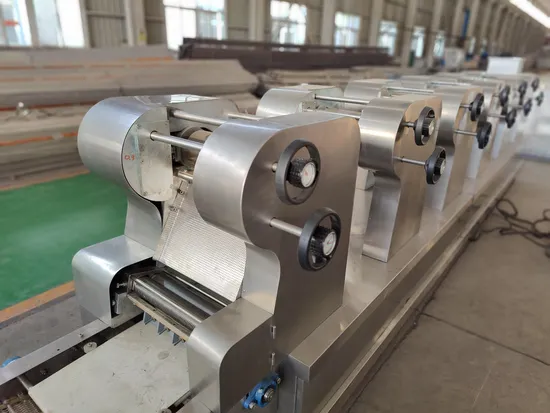

Continuous mixing--Homogenizing--Ripen conveying--Rolling--Steaming--Stretching and Cutting--Automatic blowing and shaping--Frying--Arranging--Cooling--Packaging

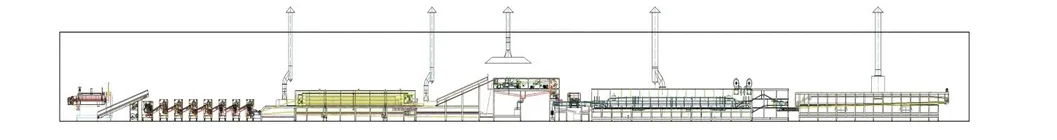

6.Layout for reference

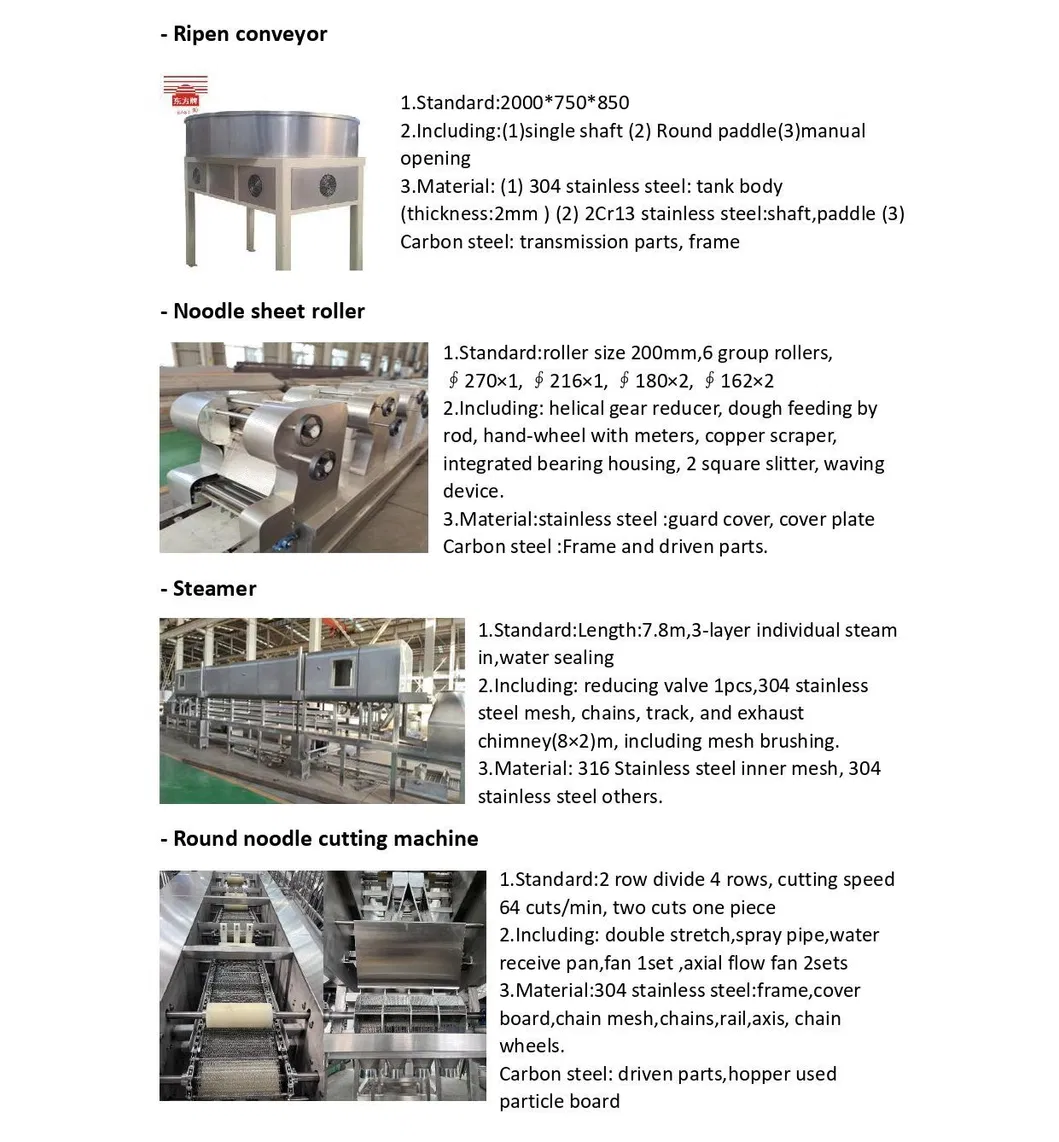

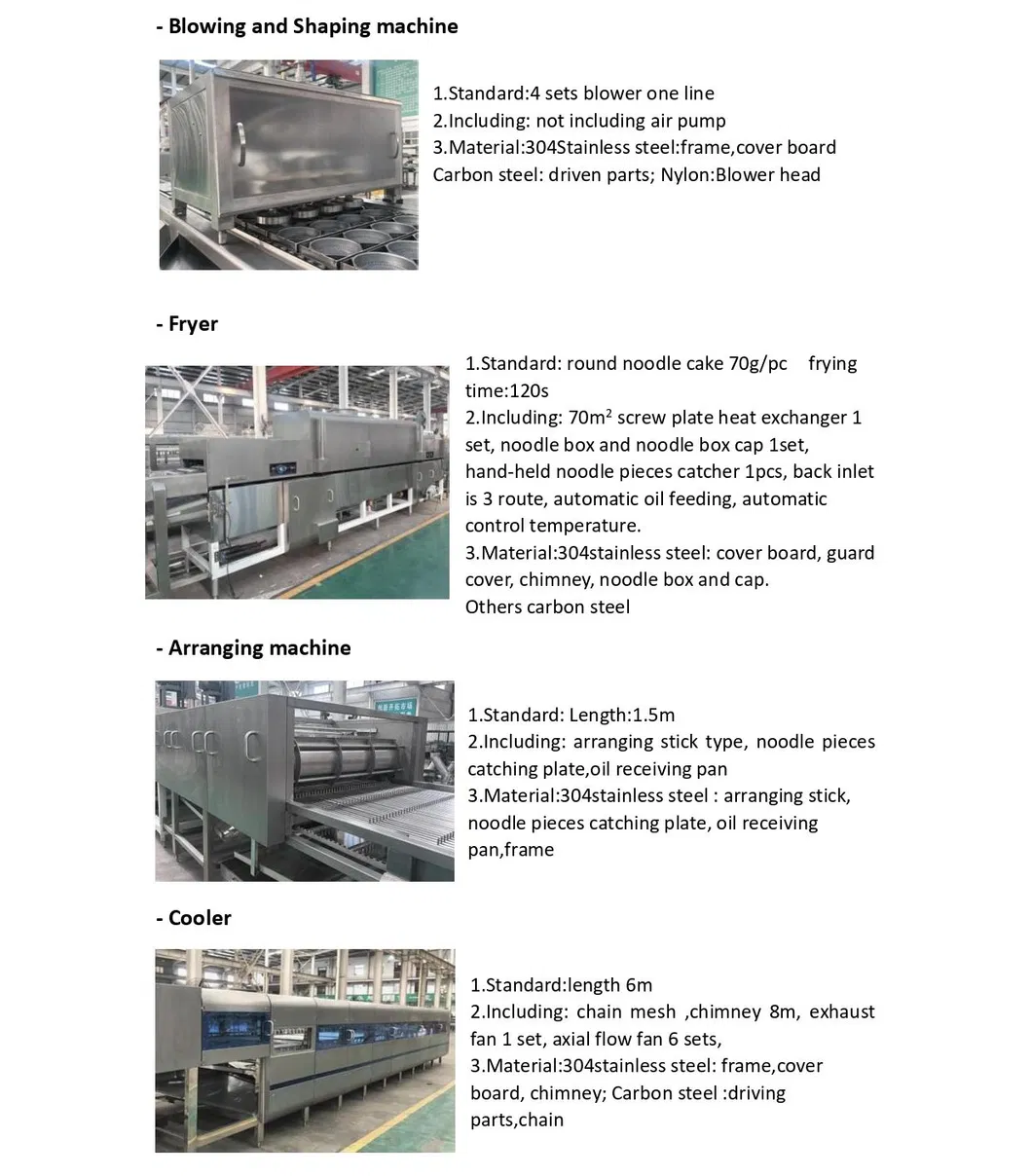

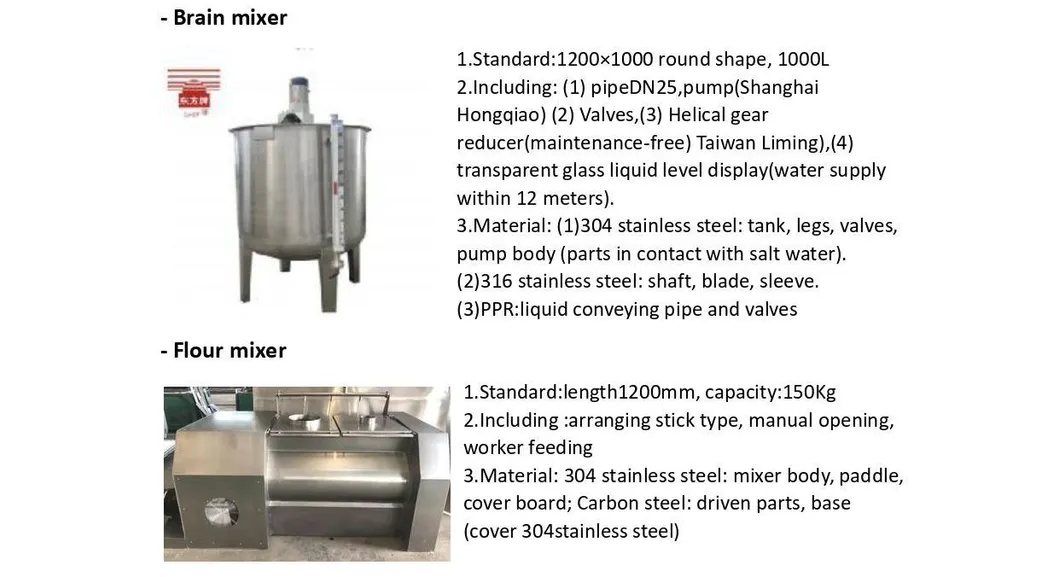

7.Parameter of main machines
Key words:
Layout
